Timbers:
Curved Feature Walls in Natural Timber
Curved walls are a striking architectural feature, and an excellent showcase for the beauty of natural wood.
The Maragon Early Learning Centre in Wellard, West Australia features a striking curved wall in Vulcan WB10 Cladding – finished in Straw Protector Oil.
The natural straw tone is designed to lighten over time, creating a soft, low maintenance façade.
Curved cladding adds another dimension to architectural design - they might seem very difficult to achieve with timber - but not with Abodo’s Vulcan vertical cladding.
See below for the minimum radius details for curved walls, in common Vulcan Cladding profiles.
We recommend contacting Abodo when designing curved walls to work through specific detailing and specifications.

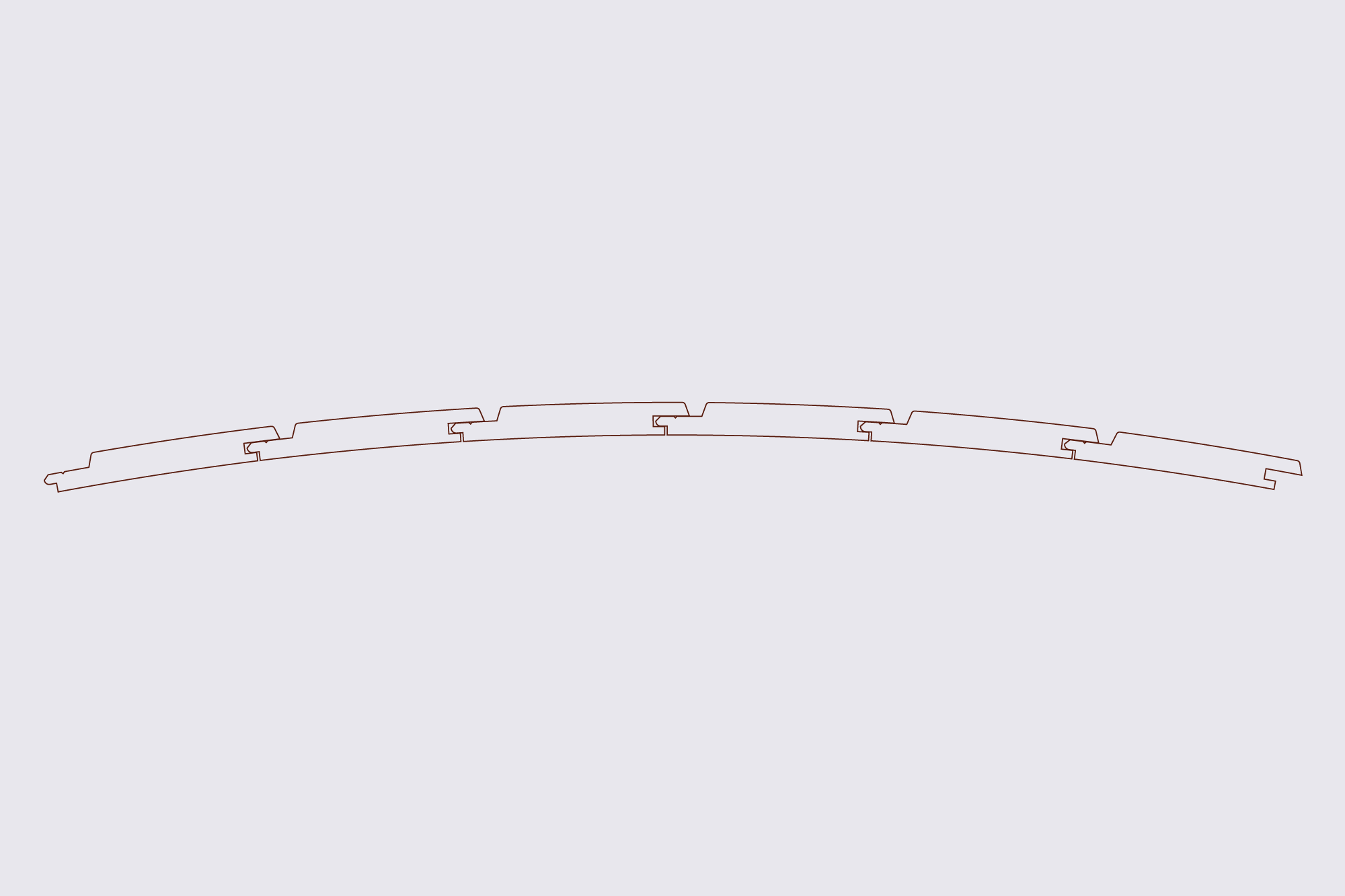

Profile: WB10/WB12
- Dimension: 20x145mm, 20x138mm
- Min radius: 2.3m

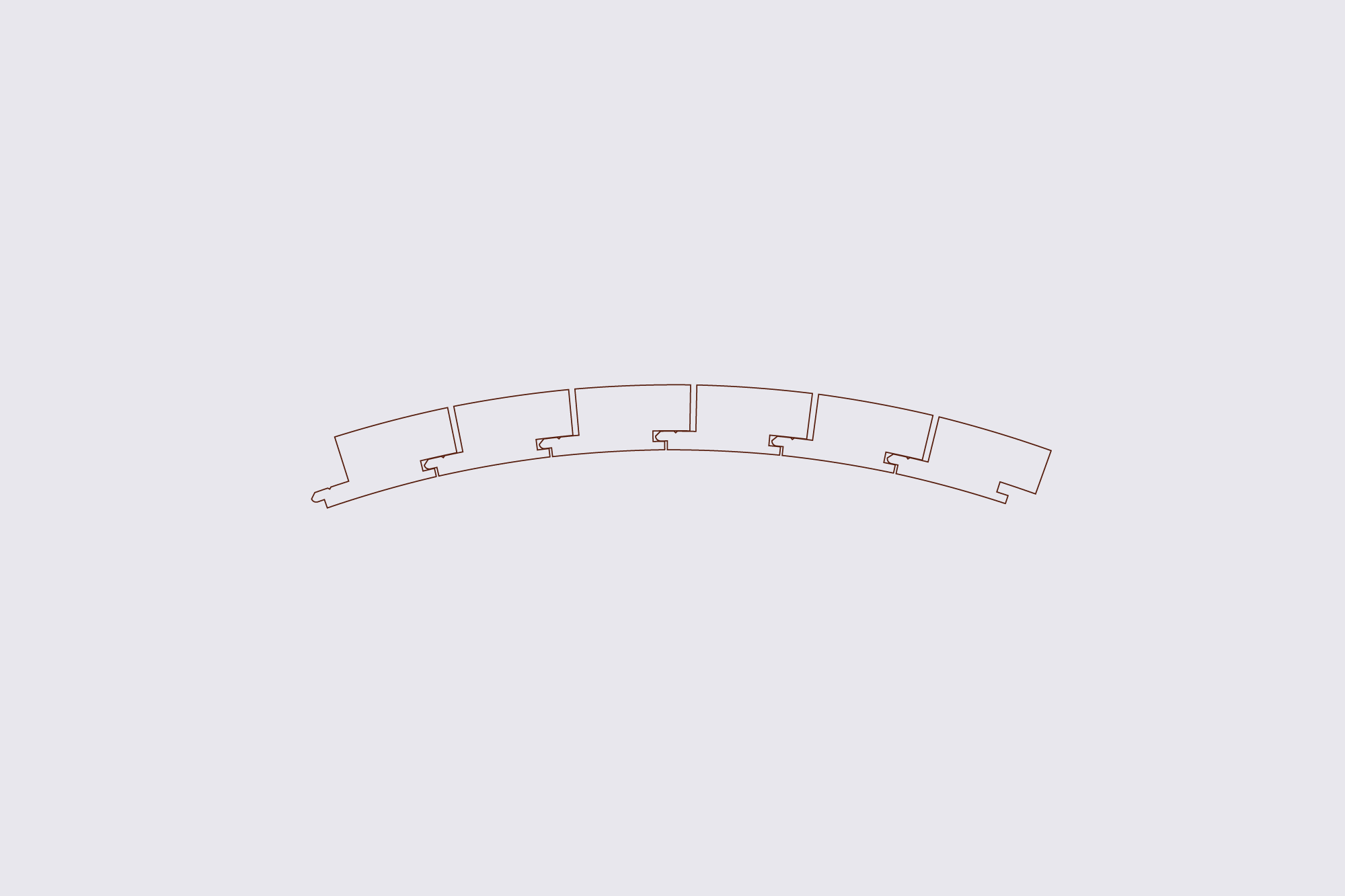

Profile: WB12
- Dimension: 40x90mm, 60x90mm
- Min radius: 0.8m
